Car Clutch Hydraulics: Diagnosis & Repair in Kilmarnock

Feeling a Bit Squishy? Let's Talk Clutch Hydraulics! ⚙️💦

Team Mechtronics are back, and today we're diving into a part of your car that's often overlooked until it starts playing up: the clutch hydraulic system. You know that smooth, consistent feel of your clutch pedal? Well, a lot of that magic comes from some clever hydraulics!

While many folks think "clutch replacement" is all about the friction disc and pressure plate (and those are super important, check out our last post on that!), there's a whole other system that helps you actually use your clutch pedal – the hydraulics!

So, what exactly are we talking about when we mention clutch hydraulics?

The Dynamic Duo: Master and Slave Cylinders

Just like your brake system, your clutch system often uses hydraulic fluid to transmit the force from your foot to the clutch mechanism. This is achieved by two main components:

1. The Clutch Master Cylinder:

   • Where it is: This wee fella is usually located under the bonnet, connected directly to your clutch pedal.

   • What it does: When you press the clutch pedal, the master cylinder takes that mechanical force and converts it into hydraulic pressure. It pushes brake fluid (yes, often the same fluid as your brakes!) down a line towards the gearbox.

   • Trouble Signs: If this goes wrong, you might notice your clutch pedal feeling soft, spongy, or even sticking to the floor. You might also have trouble getting into gear, even if the clutch itself isn't completely worn out.

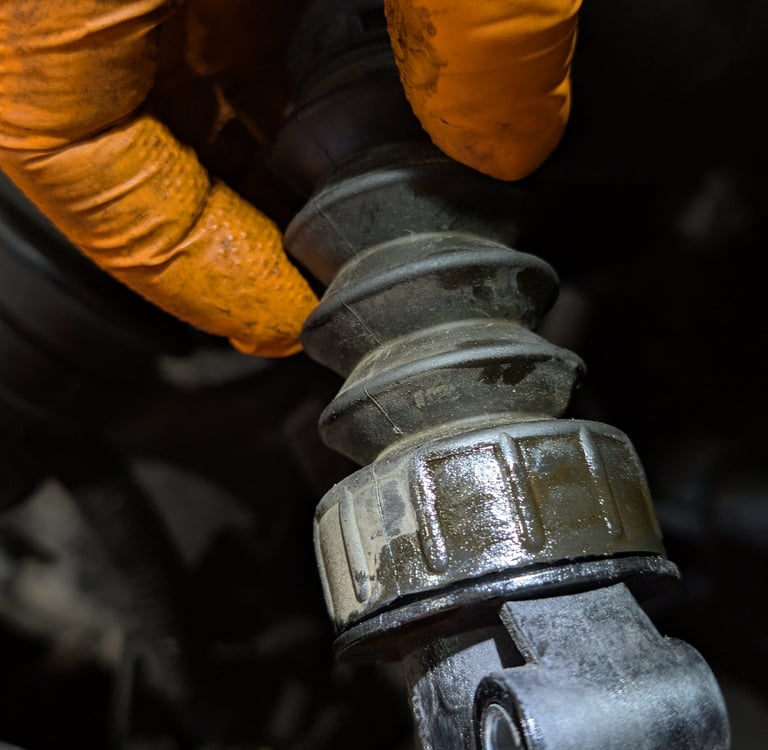

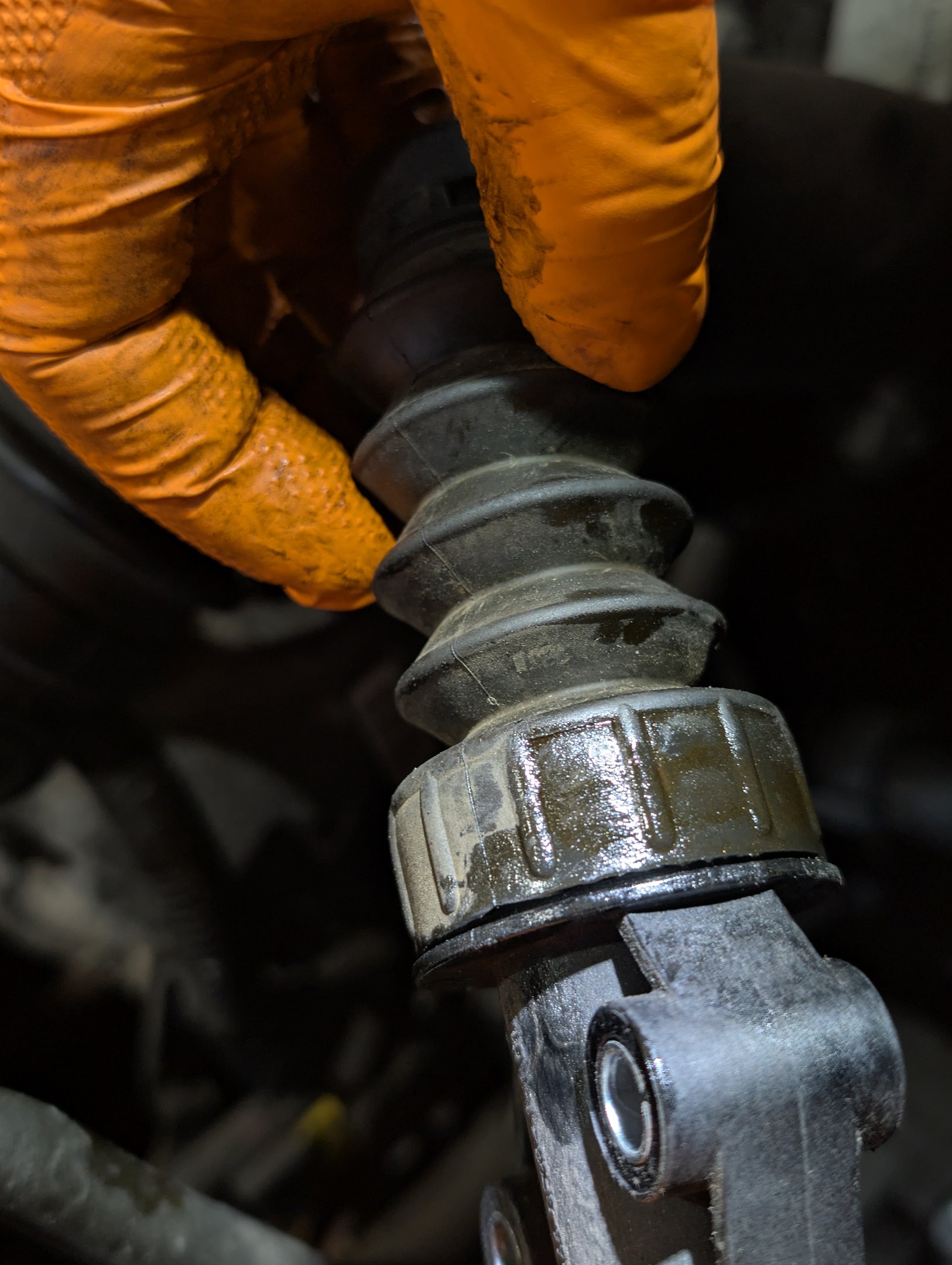

2. The Clutch Slave Cylinder (External or Concentric):

   • Where it is: This cylinder is down by the gearbox, right near the clutch assembly.

   • What it does: It receives the hydraulic pressure from the master cylinder and converts it back into mechanical force. In traditional setups, it pushes a fork that then operates the release bearing. In many modern cars, it's a Concentric Slave Cylinder (CSC), which is integrated directly with the release bearing inside the bell housing (we talked about this last time!).

   • Trouble Signs: Similar to the master cylinder, a failing slave cylinder can lead to a soft or unresponsive pedal, difficulty engaging or disengaging gears, and you might even spot a fluid leak near the gearbox or under the car. If it's a CSC, diagnosing it can be trickier as it's hidden away, but the symptoms will be clear.

Why Do Hydraulics Go Wrong?

Like any part of your car, clutch hydraulic components can wear out over time. Seals can degrade, leading to fluid leaks or internal bypass (where fluid doesn't move as it should). Air can also get into the system, which makes the pedal feel spongy because air compresses, unlike fluid.

Do We Replace Them During a Clutch Job?

It's not always necessary to replace the master cylinder during a standard clutch replacement, but we always inspect it. However, if your vehicle uses a Concentric Slave Cylinder (CSC), it's almost always replaced as part of a complete clutch kit. This is because it's already "in there" when we've got the gearbox out, and it's a critical component. For external slave cylinders, we'll assess its condition, and often recommend replacing it, especially if it looks worn or if there are any signs of leaks.

At Mechtronics, we understand that car troubles are never fun, but we're here to make the repair process as smooth and straightforward as possible. If your clutch pedal isn't feeling quite right, or you've noticed any of these symptoms, don't put it off! Get in touch for a quick diagnosis. We're known for our fair pricing, friendly service, and getting you back on the road in Kilmarnock sharpish!

Have you ever had clutch hydraulic issues? Let us know in the comments!
